Daily Guide for EcoMonitor Pro
Explaining how to use EcoMonitor Pro - Tenant Monitor, Smart Devices, Rooms
To understand the relationship between tenants, users, rooms, and plugs, refer to the System Hierarchy & Relationship page.
Tenant Monitor

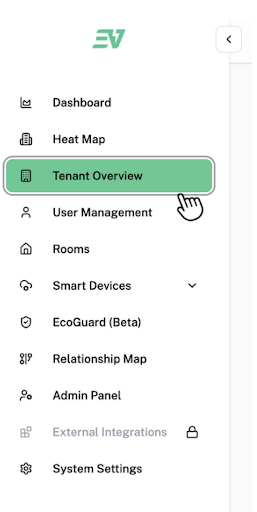

To access the Tenant Monitor, click on the “Tenant Overview” found in the side bar on the left side of the screen as shown on the left.
How to add a Tenant

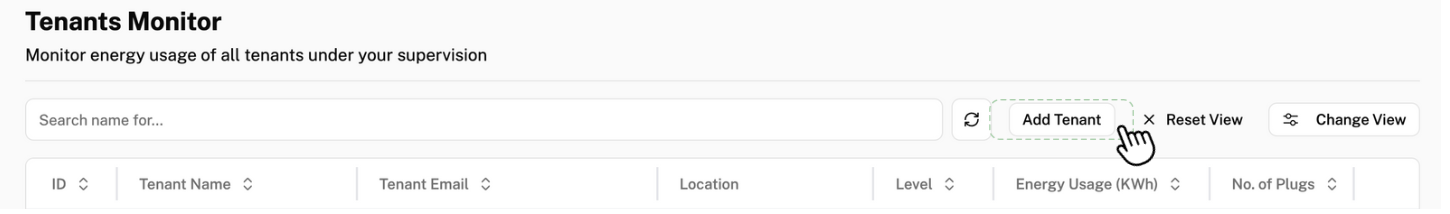

This is the page that will be displayed on your screen. To add a Tenant, click “Add Tenant” located next to the search bar.

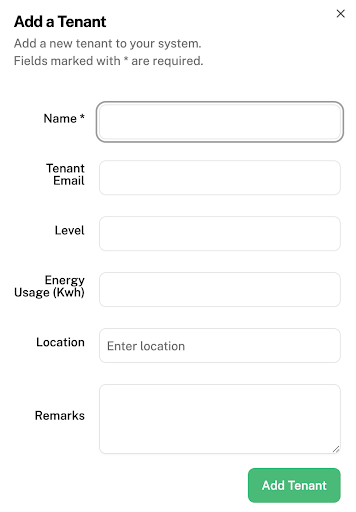

This is the pop up that will be displayed on your screen:
"Name" → enter the name you wish to label for one of your company’s branches. E.g. Company A – Pasir Ris Branch
"Tenant Email" → enter your email
"Level" (Optional) → enter the level your selected rooms, with Ecovolt plugs, are located on
"Energy usage (kWh)" (Optional) → can be left empty for now
"Location" → enter the address of your company’s branch (Location matters as it is synced to the Heat Map)
Click Add Tenant once completed.
How to Delete or Edit a Tenant

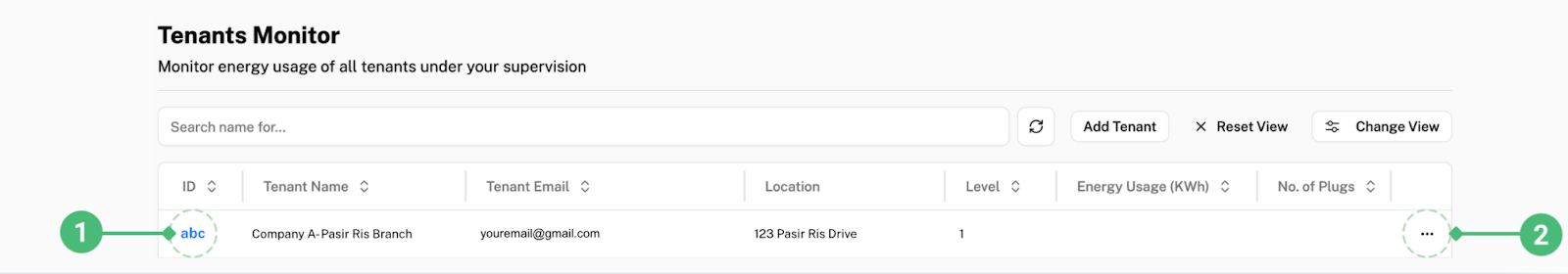

This is how it should look like after adding your desired tenant:
For quick action to delete or edit your tenant, click the 3-dot icon labelled as 2 in the picture above.
To access the Tenant Dashboard, press the tenant’s ID (in blue) labelled as 1 in the picture.
Tenant Dashboard

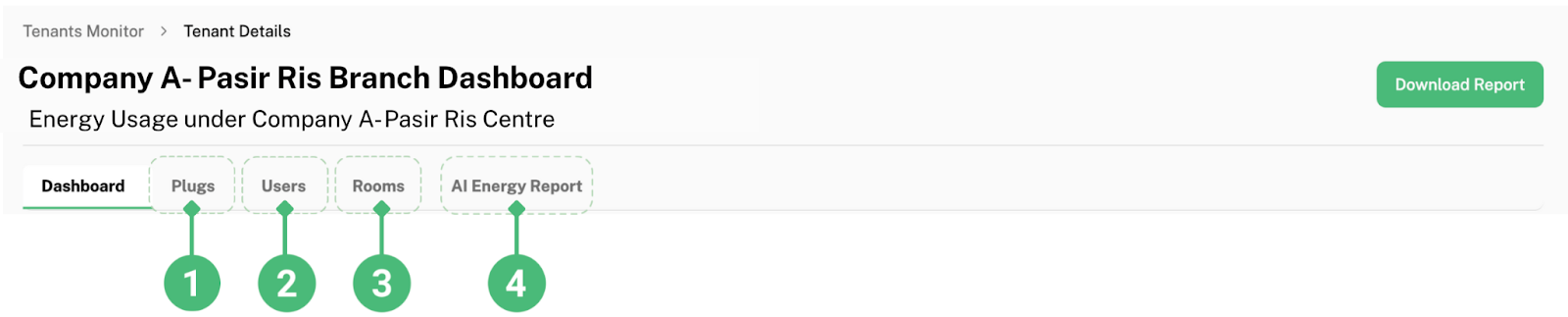

This should be displayed on your screen:
Under the Tenant Dashboard, you can view all the details of your tenant.
To access Tenant’s Plugs, click on “Plugs” labelled as 1 above. Here, you will be able to view all plugs under this tenant.
To access Tenant’s Users, click on “Users” labelled as 2 above. Here, you will be able to view all users under this tenant.
To access Tenant’s Rooms, click on “Rooms” labelled as 3 above. Here, you will be able to view all rooms under this tenant.
To access Tenant’s AI Energy Report, click on “AI Energy Report” labelled as 4 above.
How to Generate a Report

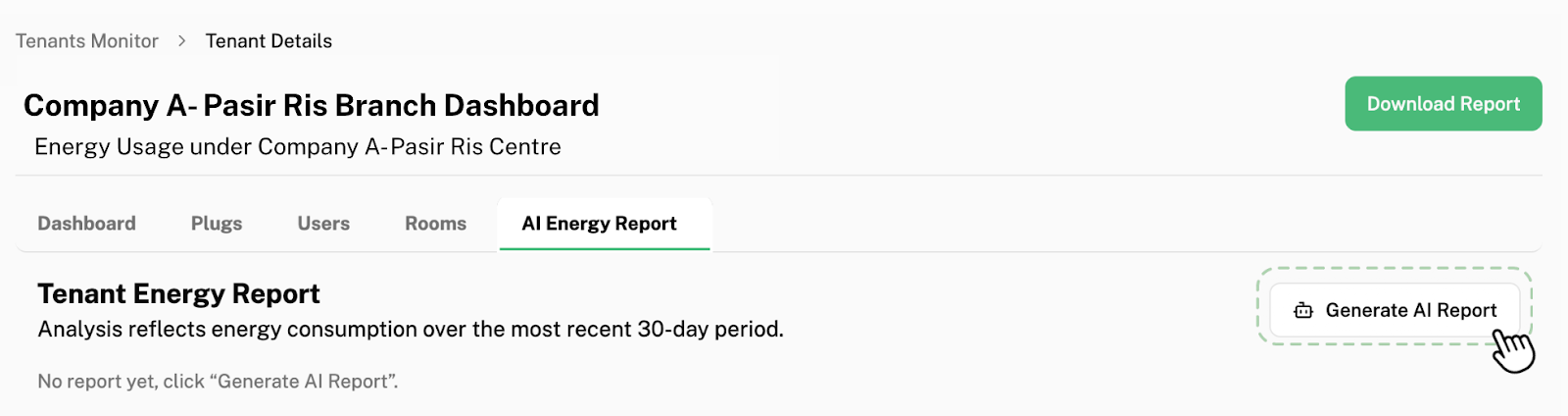

To generate a report, press “Generate AI Report” & Save the report.
This automatically generates a 30-day report. This report can be downloaded into a docs and edited to be referred back to in the future.
This report includes:
- Executive Summary
- Consumption Analysis
- Usage Trends
- Improvement Suggestions
- High-Load Device Highlights
- Anomaly Detection
Smart Devices

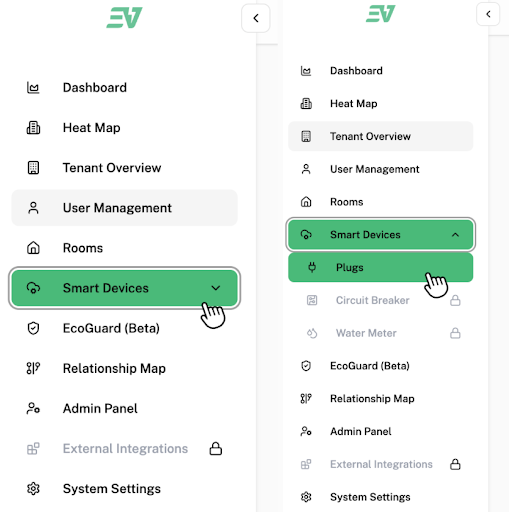

To access smart devices, click “Smart Devices” found in the side bar. All smart systems connected to your System are found here.
How to Access Plugs
To access plugs, click “Plugs” found under “Smart Devices”.

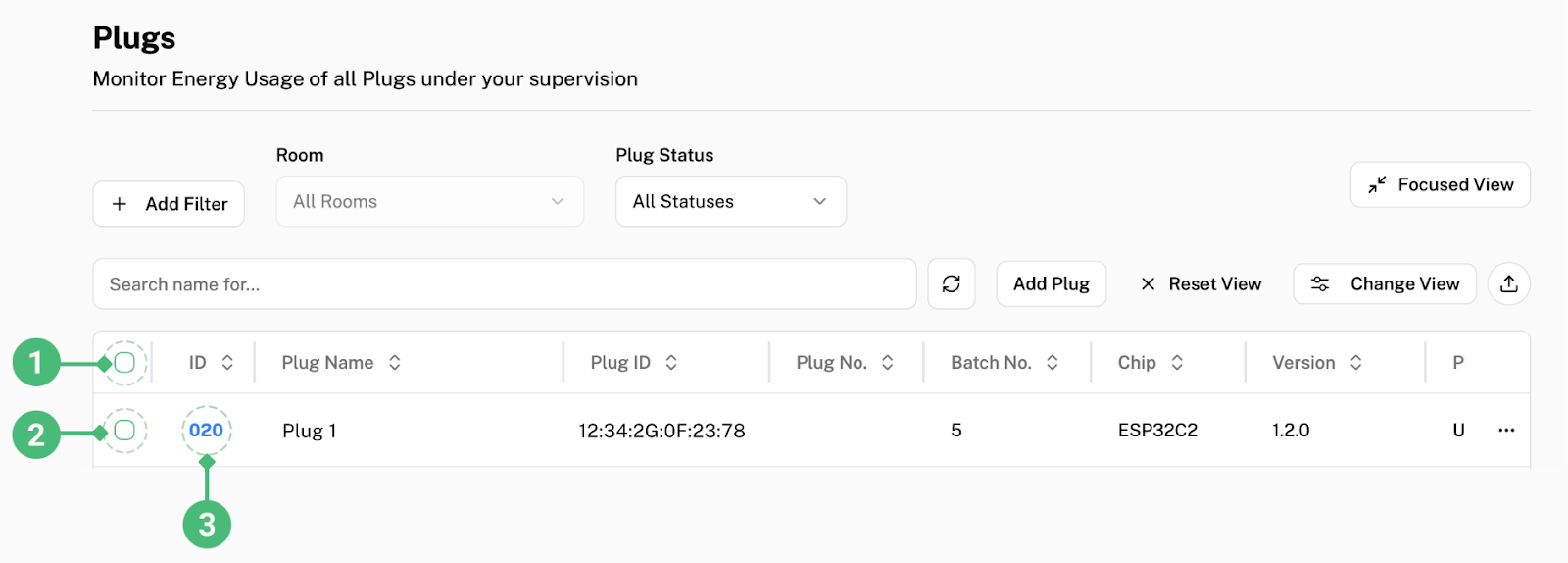

This is the page that will be displayed on your screen:
To select all plugs listed, click the check box labelled as 1.
To select a specific plug, click the check box next to the plug you want to select, as shown above in the checkbox labelled as 2.
How to Access Plug Dashboard
To access the Plug Dashboard, click the plug’s ID (in blue) labelled as 3 in the picture. Under the Plug Dashboard, you can view all the details of your plug.

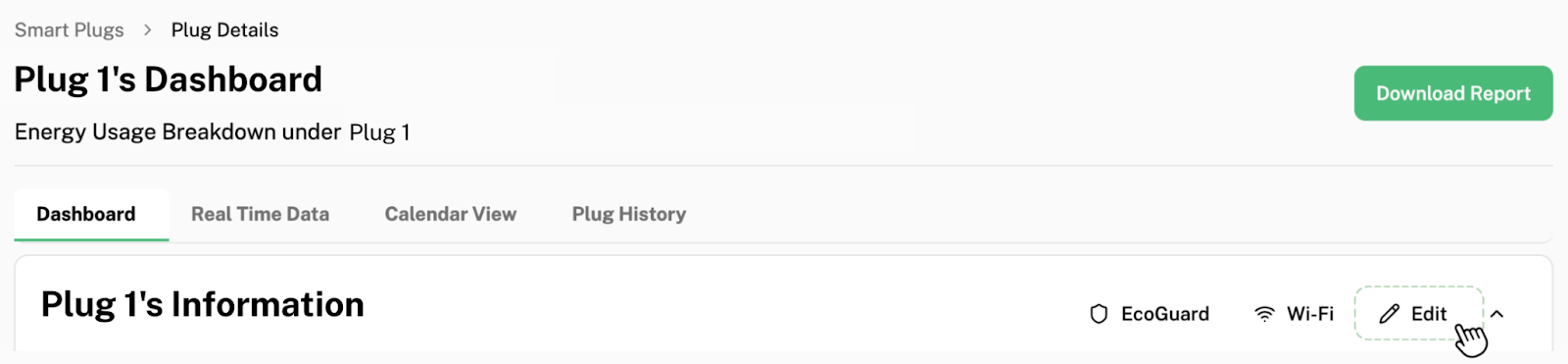

After clicking 3, you will be brought to this page:
How to Edit Plug Information

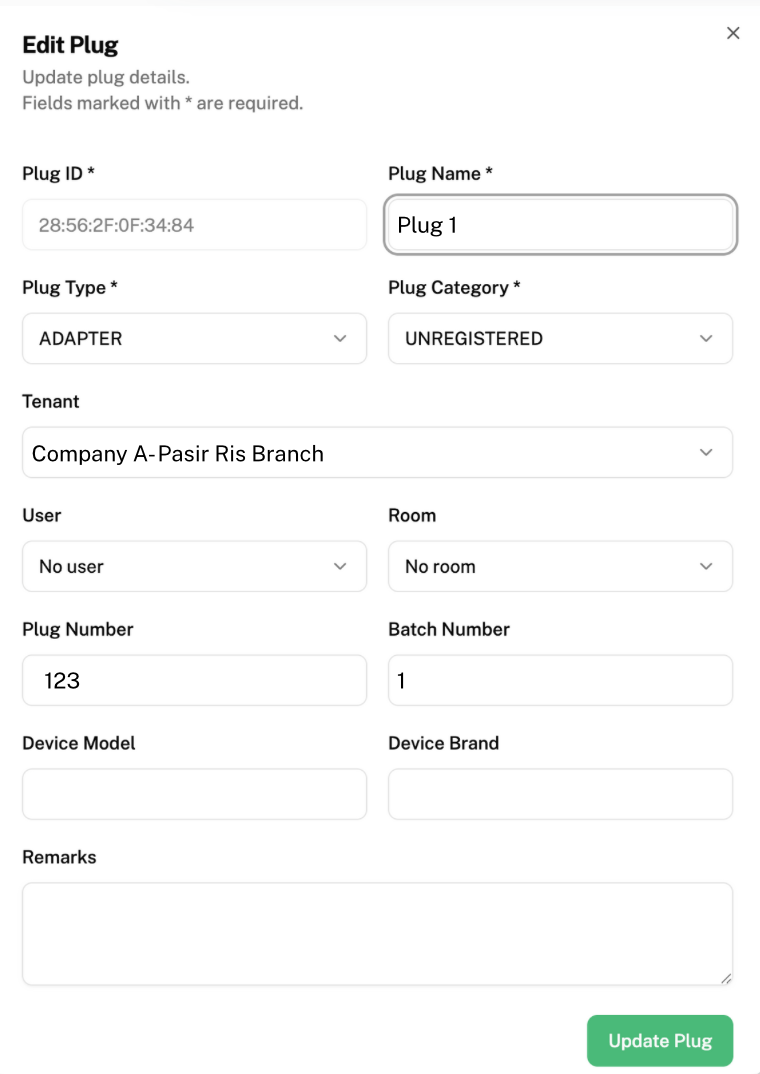

To edit the plug's information, click "edit". This pop-up will be displayed on your screen:
"Plug Name" fill in what you want your plug to be labelled as
Click on "Plug Type" and select the plug type that corresponds with your plug
Click on "Plug Category" and select the type of device your plug is connected to*
Click on "Tenant" and select the tenant your plug is found in (Optional)
Click on "User" and select the user your plug is under (Optional)
Click on "Room" and select the room your plug is found in (Optional)
"Plug Number" and "Batch Number" can be left as it is (Optional)
"Device Model" fill in the model of the device your plug is connected to (Optional)
"Device Brand" fill in the device model of the device your plug is connected to (Optional)

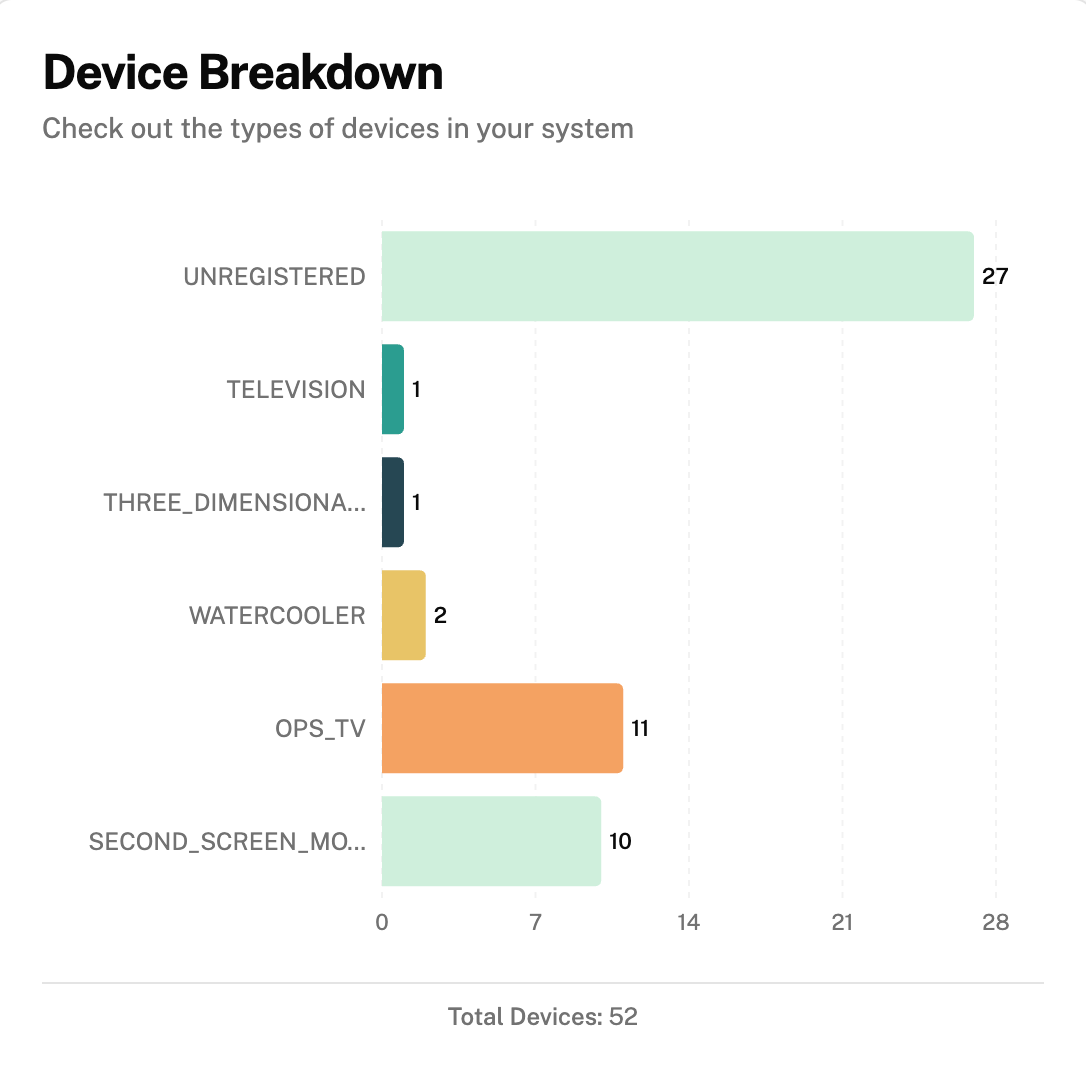

*Even though “Plug Category” is Optional, we recommend you to categories your plugs, as you will be able to have a better view of how many plugs are under each type of device in your system. This can be seen under “Device Breakdown” as shown below for example.

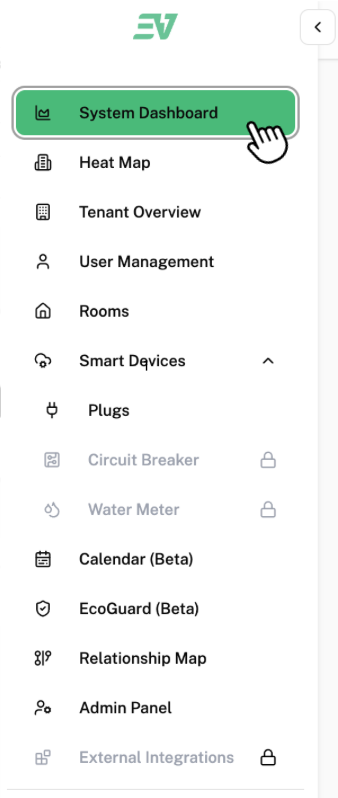

To view “Device Breakdown”, click on “System Dashboard” in your side bar.
How to Power On/Off a Plug
After selecting your desired plug(s), these options will be displayed on the bottom of your screen
To turn on or turn off the power of your selected plug(s), click on “Power ON/OFF” labelled as 1.

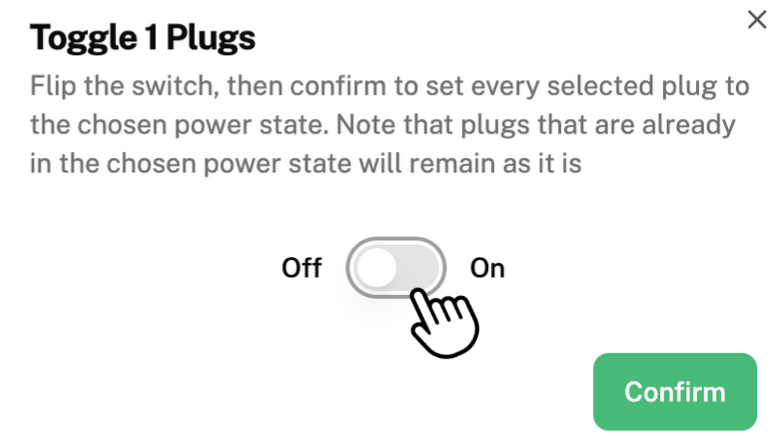

This pop-up will be displayed on your screen. Click on the white button and press “confirm” to turn on the plug(s).

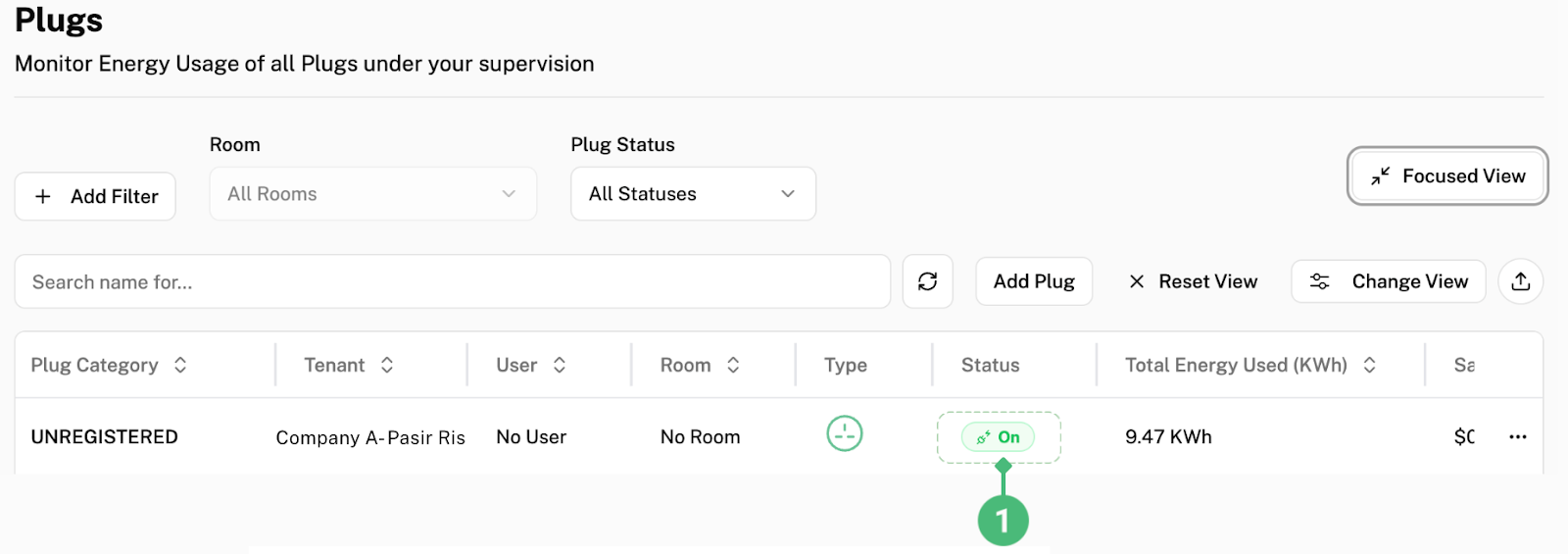

To confirm whether your plug(s) are on, you can double check that the status of the plug(s) is “On” as shown in the dotted box labelled 1.
How to Change the Wi-Fi of a Plug
To change the wifi of the plug(s), click “Send Wi-Fi Configuration” labelled as 2.
Ensure the plug is turned on and connected to the Wi-Fi (light of plug is on and not blinking) to receive the changing to Wi-Fi credentials.

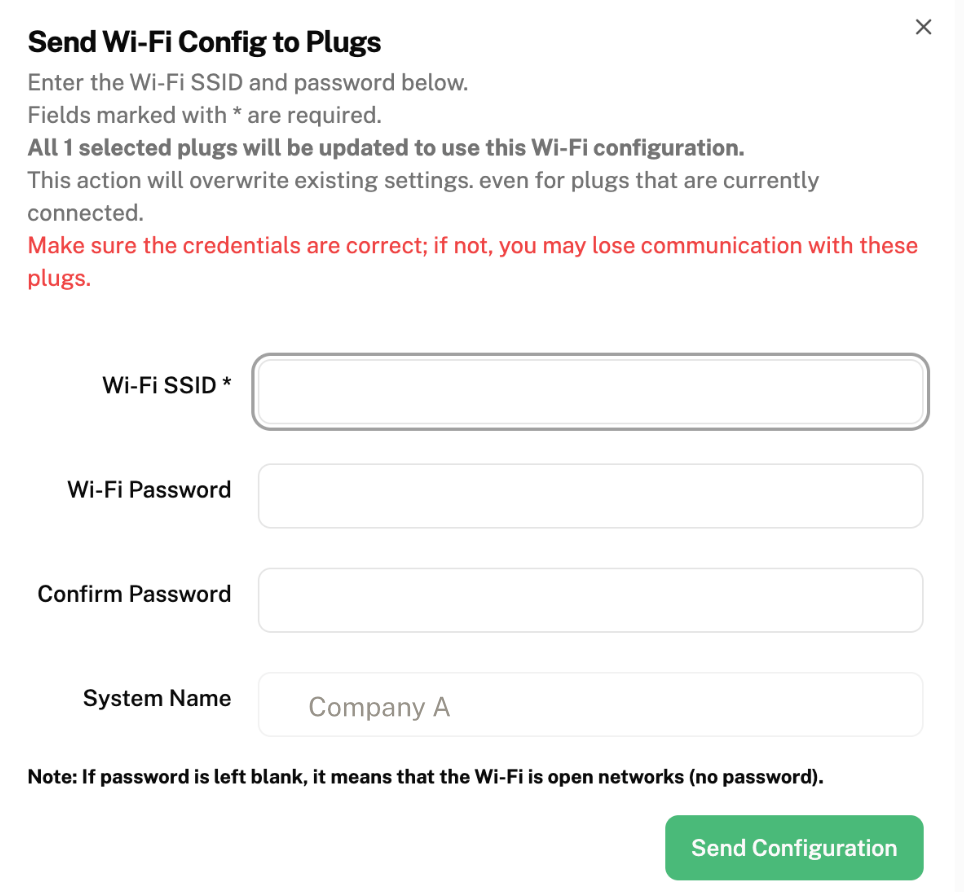

This is the pop-up that will be displayed on your screen:
“Wi-Fi SSID” fill in the Wi-Fi name you want to change your plug(s) to
“Wi-Fi Password” fill in the password of the Wi-Fi you entered in “Wi-Fi SSID”
“Confirm Password” renter the same password
“System Name” will already be entered for you as your company’s name, you can leave it as it is
Click on “Send Configuration” to confirm the change of Wi-Fi
Ecomonitor will push the new Wi-Fi configuration to all connected plugs. During this process, the plugs’ indicator lights will blink as they attempt to connect to the new network. Once successfully connected, the blinking will stop and the indicator light will remain steady.
How to Set a Scheduled Timer for a Plug
Note: Only set a scheduled timer after 14 days of the first installation of Ecovolt smart plugs.
To set a scheduled timer for when your plug(s) will automatically turn on and off, click on “Set Scheduled Timer” as labelled as 3.

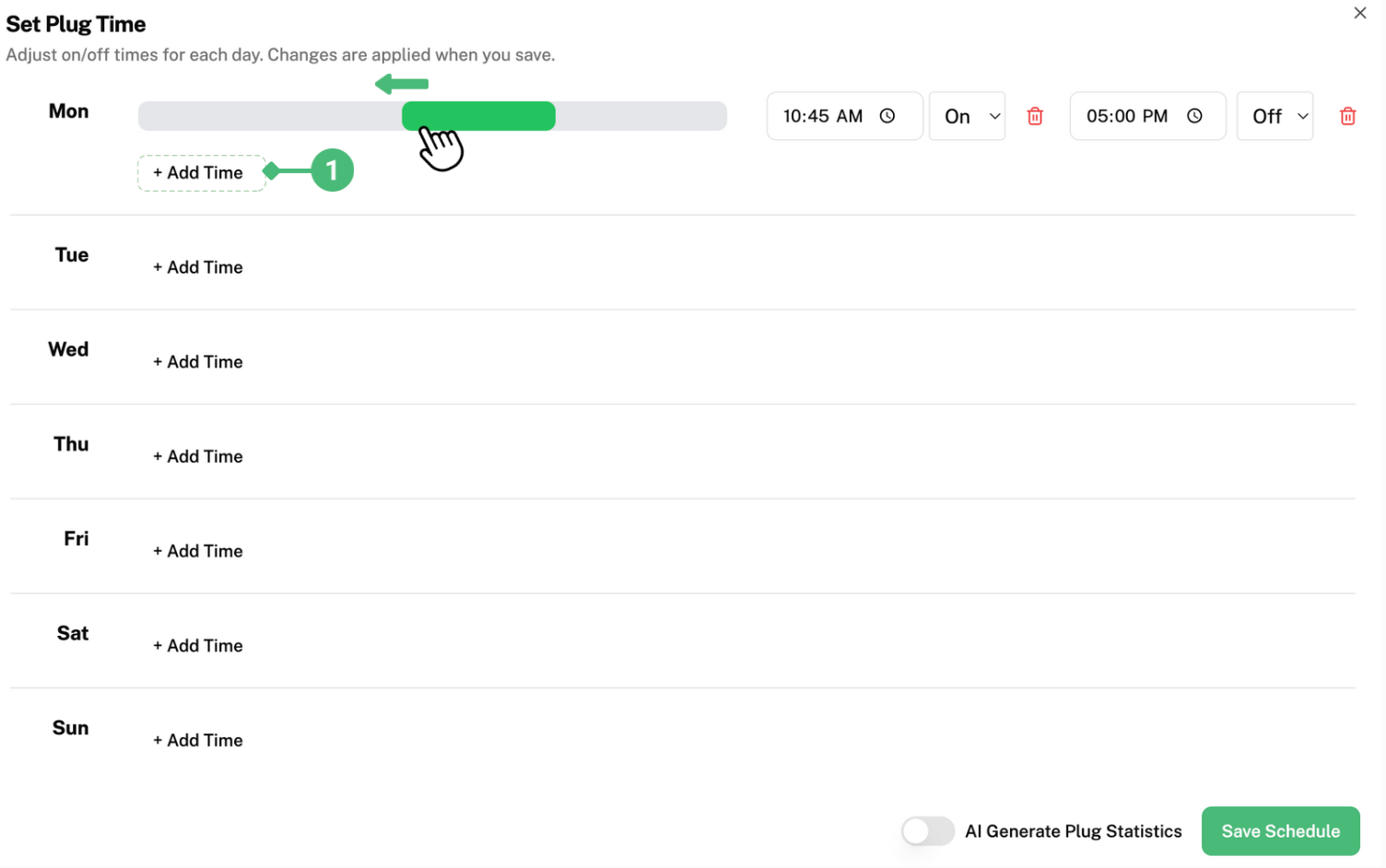

This is the pop-up that will be displayed on your screen:
To set a timer, click on “Add Time” labelled as 1. The grey bar will appear. Here, you can click and drag the green bar left and right until you acquire your desired timing. For example, the picture above illustrates the green bar being dragged to the right, so that the plug will be turned on at an earlier timing. The green bar represents the duration the plug is turned on for.
After dragging the green bar to the right, the starting time has been changed from 10 45am to 8am as shown in label 1. You can decide which time you want the plug(s) to be turned off or on by clicking on the boxes labelled 2. Typically, users set the plugs to be turned on during office hours. For example, setting the plugs to turn on at 8am and turn off at 5pm from Monday to Friday, while not setting a time for Saturday and Sunday, so the plugs will not be turned on as the office is not in use.
After finishing setting your desired timings, click “Save Schedule” to save your schedule in the software.
“AI Generate Plug Statistics” labelled as 3 is turned off by default, this can be left as it is.
To edit the relationship between Tenant, Room and Plug, click “Edit Relationship” labelled as 4.
How to Edit the Relationship Within the System

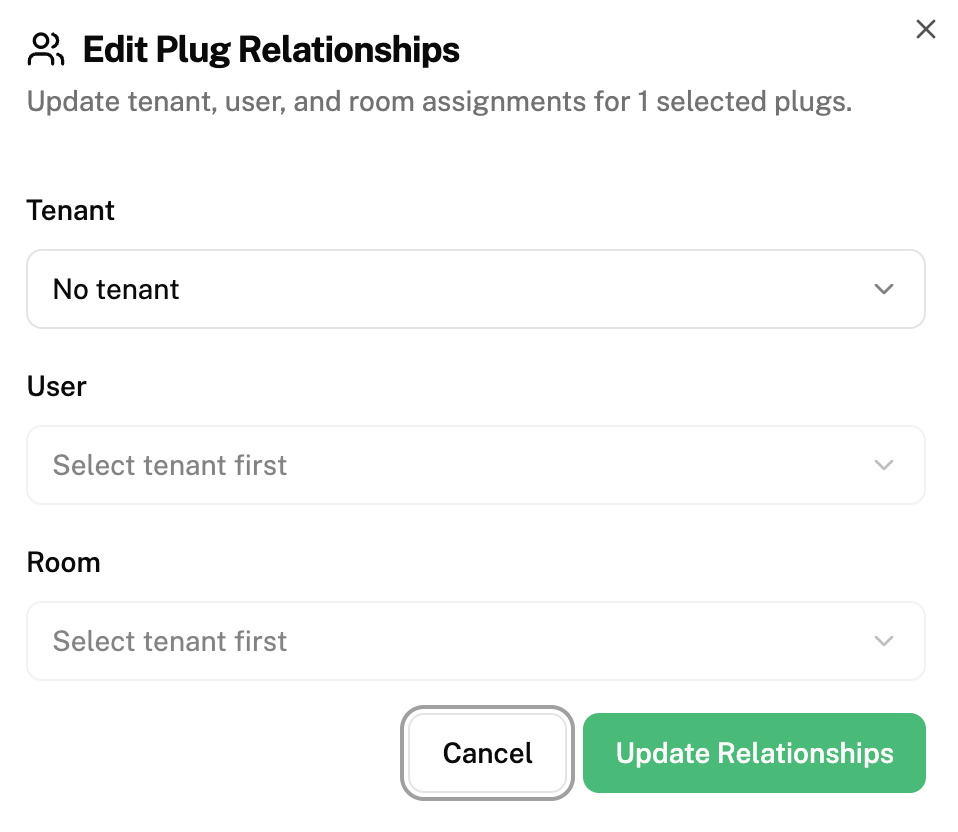

This is the pop-up that will be displayed on your screen:
Click on “Tenant” and select the tenant (branch/location/outlet) you wish to change the plug(s) to
Click on “User” and select the user you wish to change the plug(s) to
Click on “Room” and select the room you wish to you wish to change the plug(s) to
Click “Update Relationships” to confirm this change and save it in software
How to Download a Report
To download a report of your plug(s), click on “Download Report” labelled as 5.
This report includes:
- Hourly energy usage breakdown
- Daily energy usage breakdown
- Weekly energy usage breakdown
- Monthly energy usage breakdown

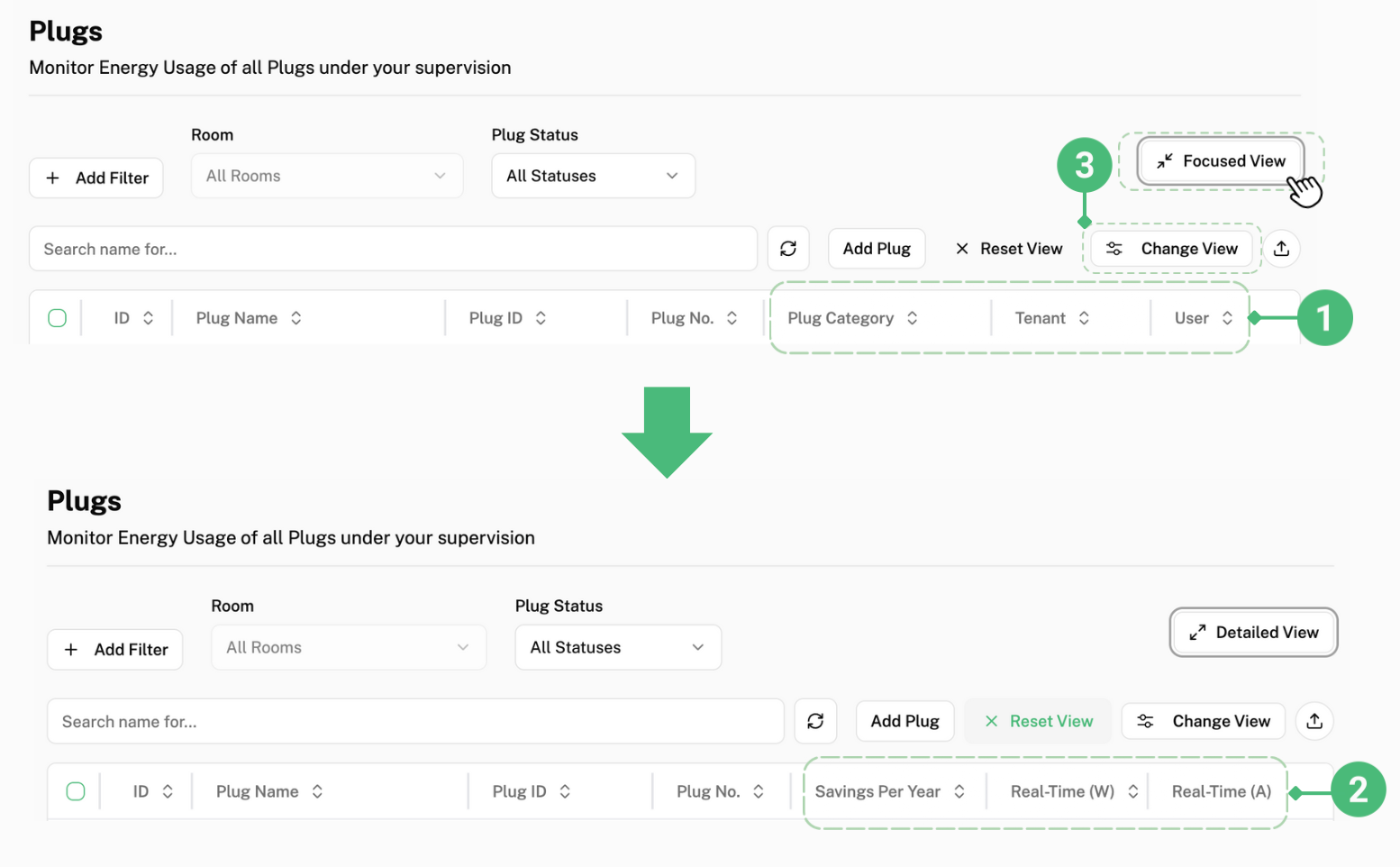

To get a detailed overview of the plugs, click “Focused View” as shown by the cursor below, this box will be changed to “Detailed View” and the headers of the overview will be changed from dotted box labelled 1, to the dotted box labelled 2.
Rooms
How to Add a Room

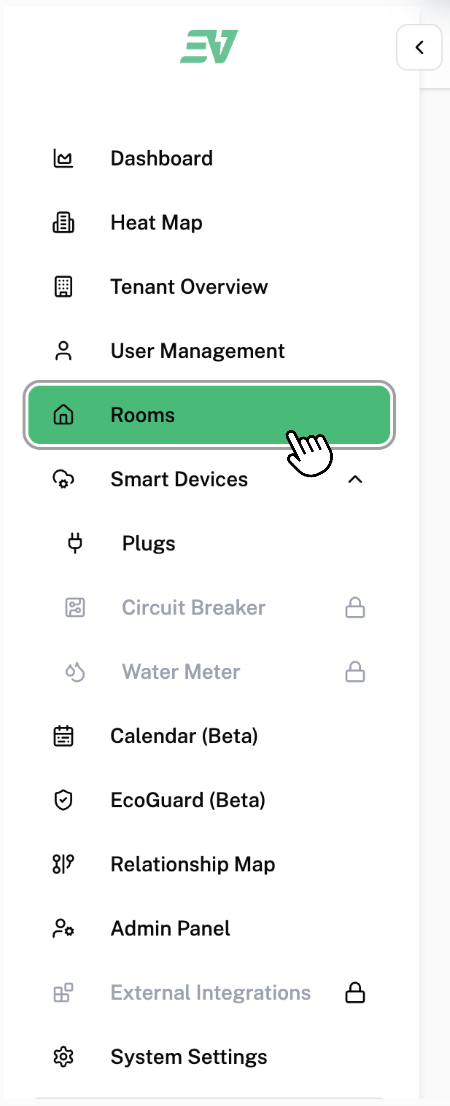

To access rooms, click on “Rooms” found in the side bar.

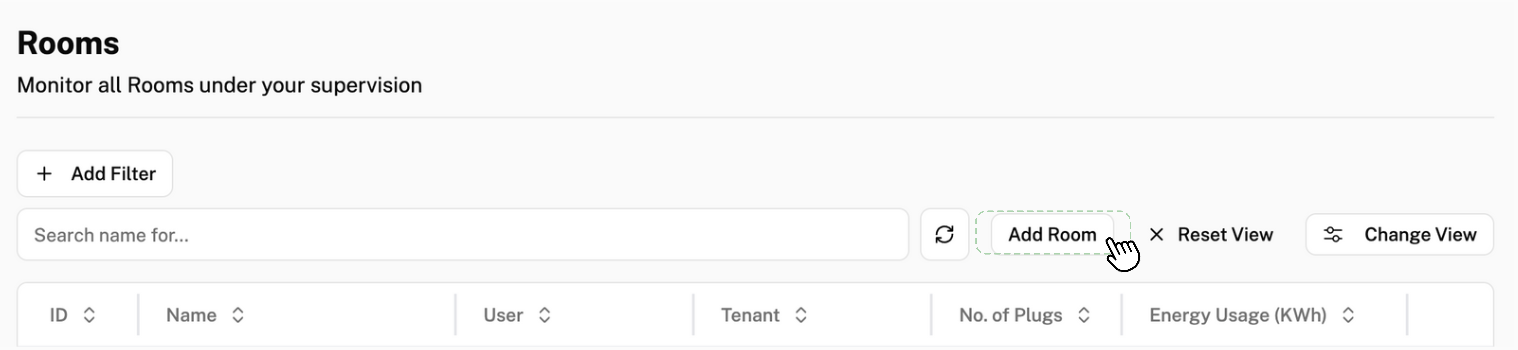

This is the page that will be displayed on your screen:
To add rooms, click “Add Room”.

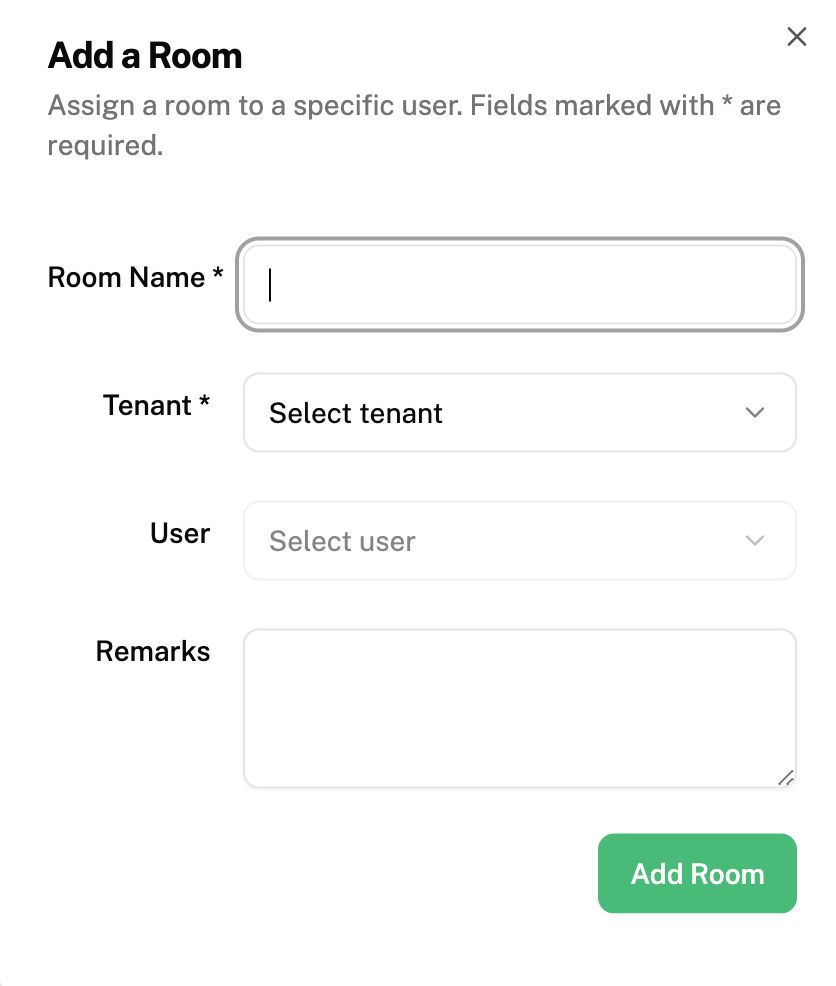

This is the pop-up that will be displayed on your screen:
“Room Name” fill in the name of the room your plug(s) are found in
Click on “Tenant” and select the tenant this room is under (Which branch can this plug and its respective room be found in)
“User” can be left empty for now
“Remarks” are optional
Click “Add Room” to confirm this change and save it in software
Admins
How to Add an Admin

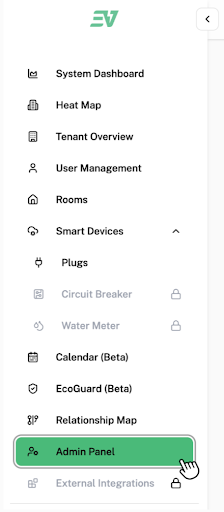

To access the Admin Panel, click on "Admin Panel" found in the side bar.

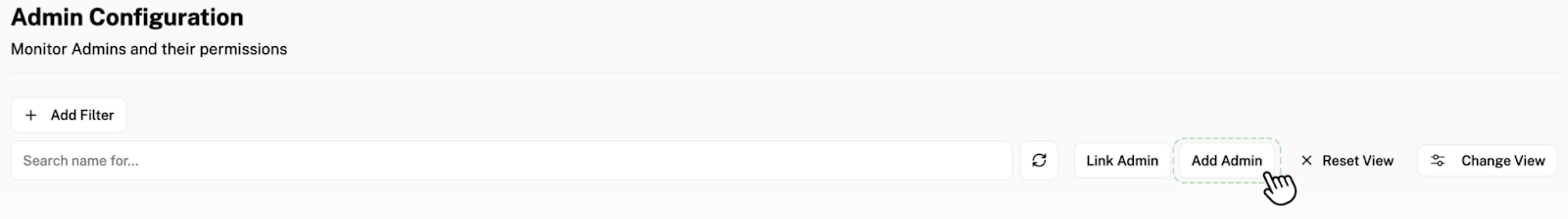

This is the page that will be displayed on your screen:
To add an admin, click "Add Admin".

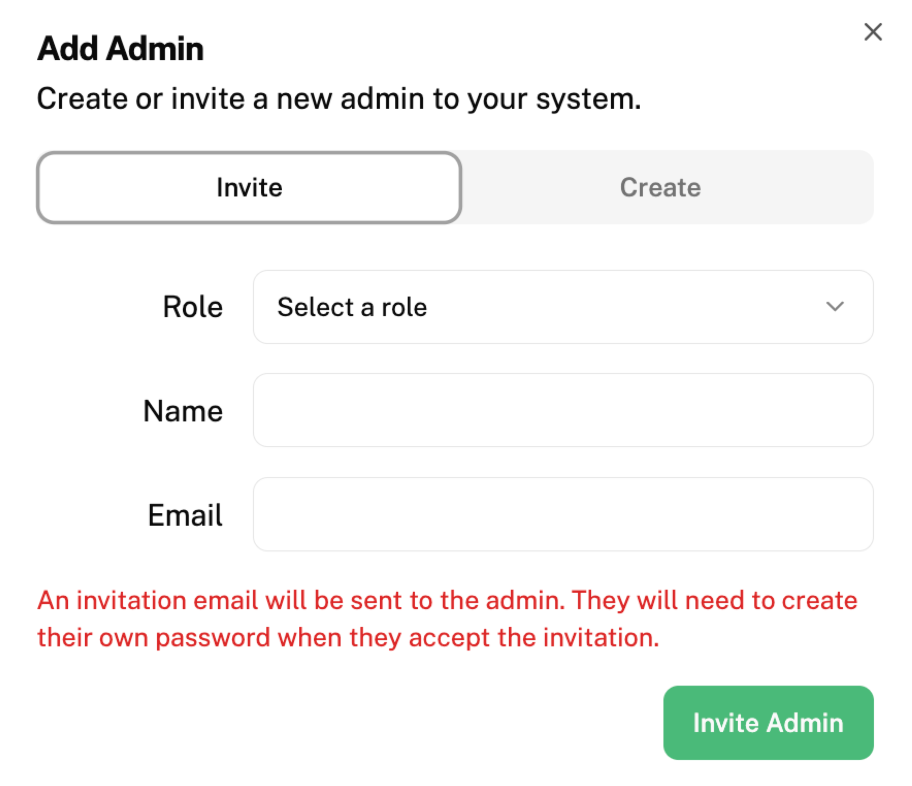

This is the pop-up that will be displayed on your screen:
Click on "Role" and select the role you want to assign this new admin
"Name" fill in the new admin's name
"Email" fill in the new admin's email
Click "Invite Admin" to send an invitation email to this new admin
Calendar
How to Add a Schedule for a Specific Date

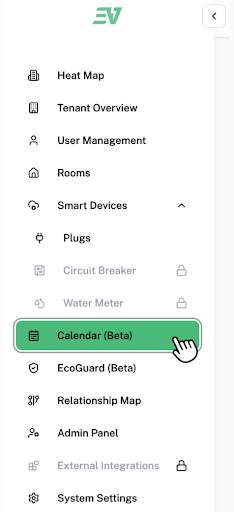

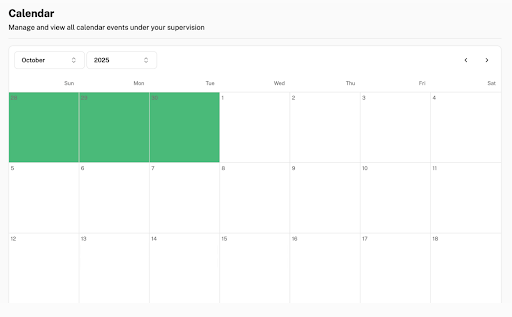

Click on “Calendar (Beta)” found in the side bar.
This is the page that will be displayed on your screen:
To add a schedule for a specific date, click on the box of the date you want to add a schedule to.

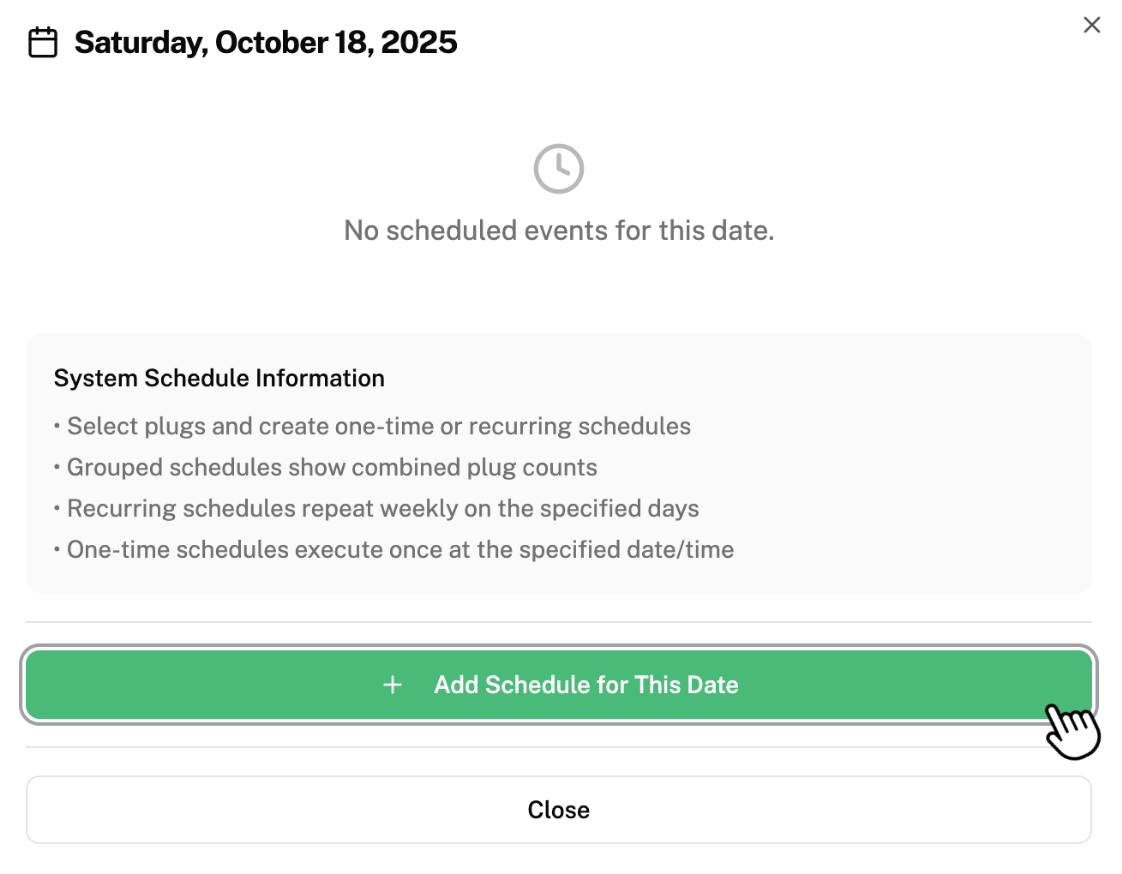

This is the pop-up that will be displayed on your screen:
Click on “Add Schedule for This Date”.

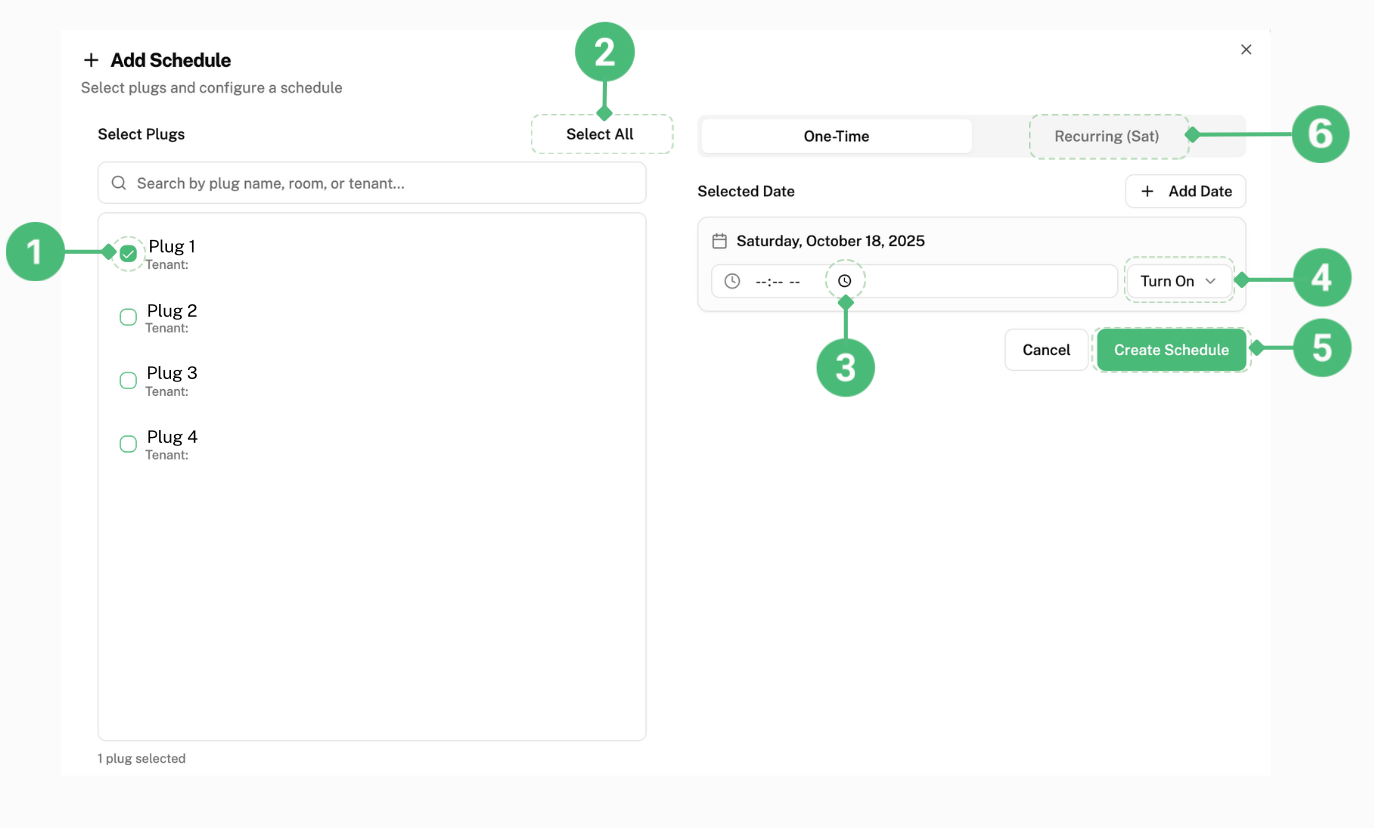

This is the pop-up that will be displayed on your screen:
To individually select the plug you want to set a schedule on this date, click the small box next to it labelled as 1.
To set a schedule for all the plugs in your system on this date, click on “Select All” labelled as 2.
To set a time, click on the clock symbol labelled as 3.

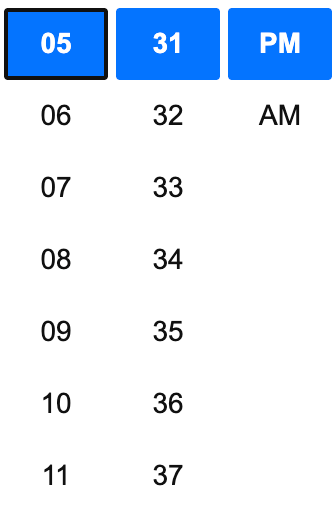

This pop-up will be displayed:
Select the time you want your plug(s) to turn on or off.
Click on “Turn On” labelled as 4 and select whether you want your plug(s) to turn off or on for the time you have set.
Click on “Create Schedule” labelled as 5 to save this schedule in your system.
Multiple schedules can be added on the same day.
To add a schedule that recurs every week, click “Recurring” labelled as 6 and repeat the same steps as mentioned above.
How to View a Summary of All the Schedules

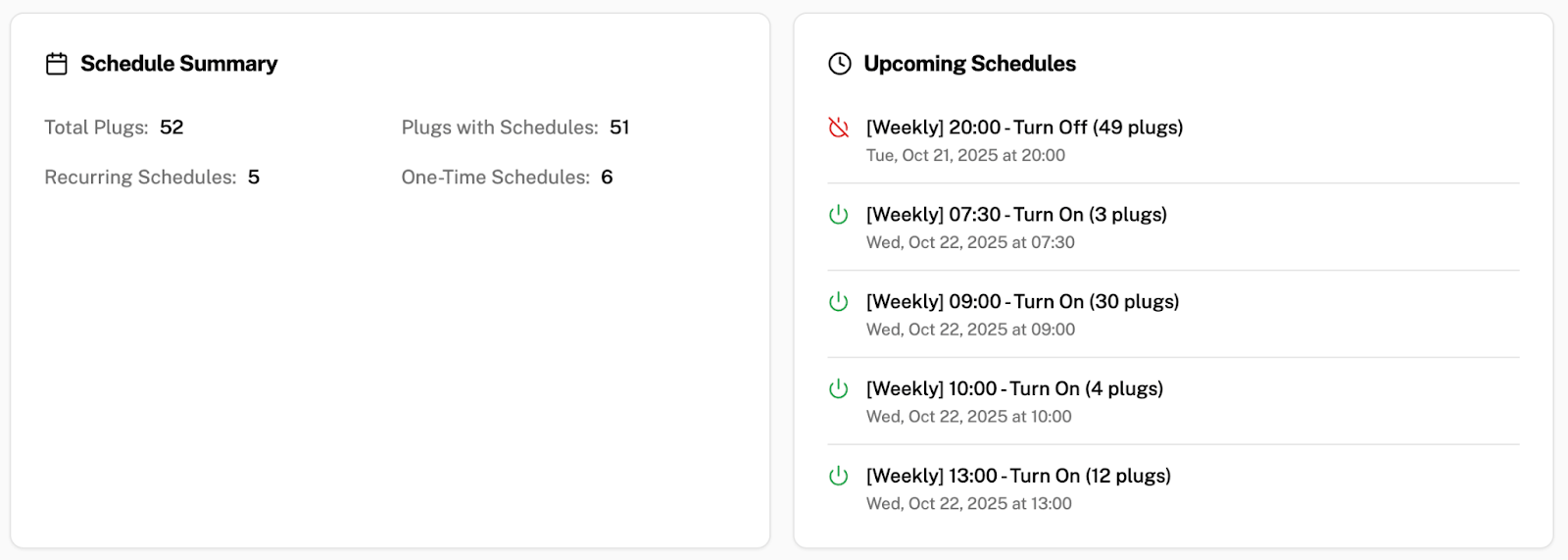

To get a summary of all the schedules you set, scroll to the bottom of the page. This is an example of what you will see:
